8SK 95 50 Hz Submersible Pump | 8" Stainless Steel | SLEKA

Primary Applications

Irrigation systems

Drip, sprinkler, and flood irrigation systems

Raw-water supply

Municipal and rural raw water sourcing

Pressure boosting

Building and process pressure boosting

Groundwater lowering

Dewatering for construction and mining

Industrial applications

Process water, cooling, and utility applications

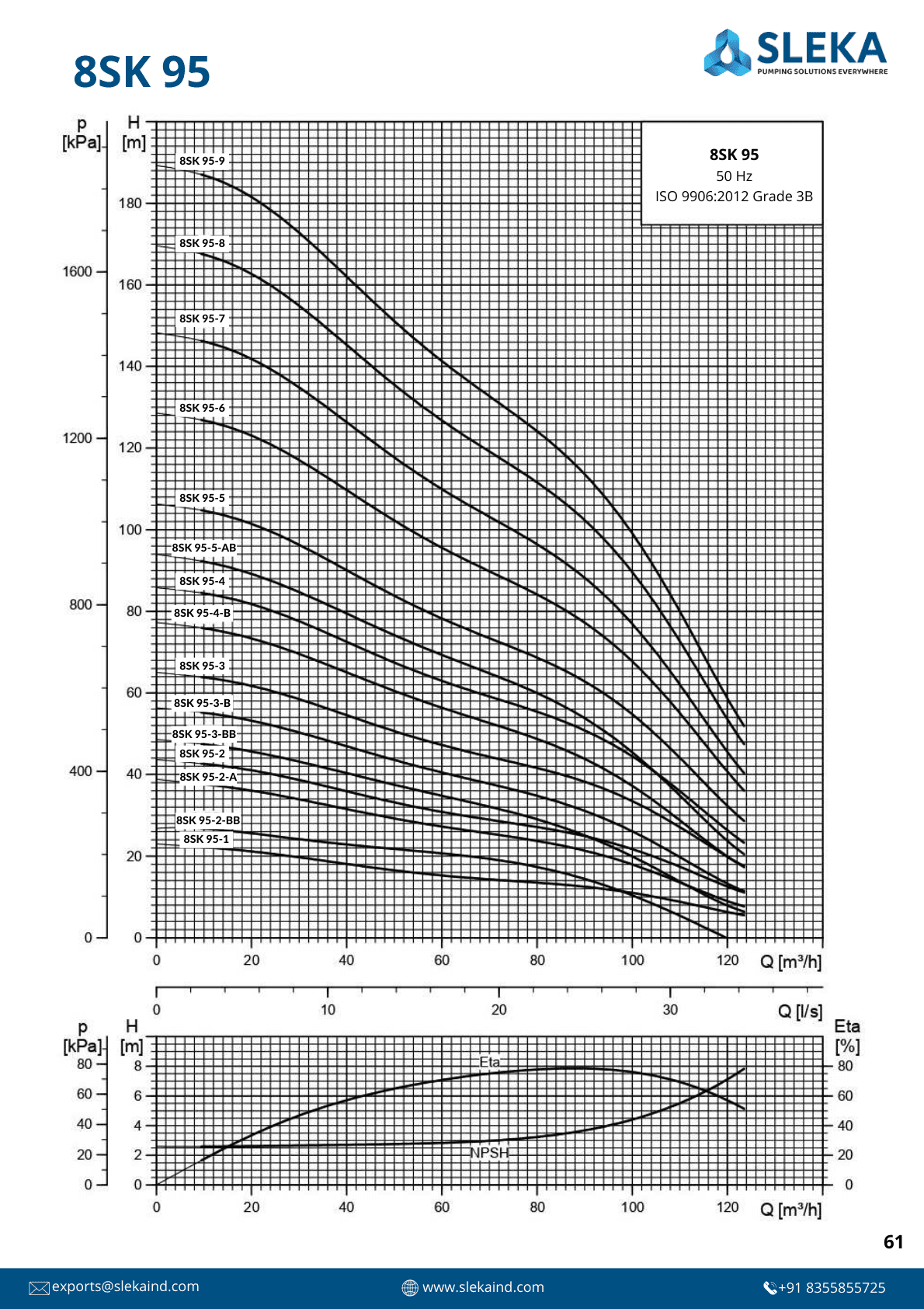

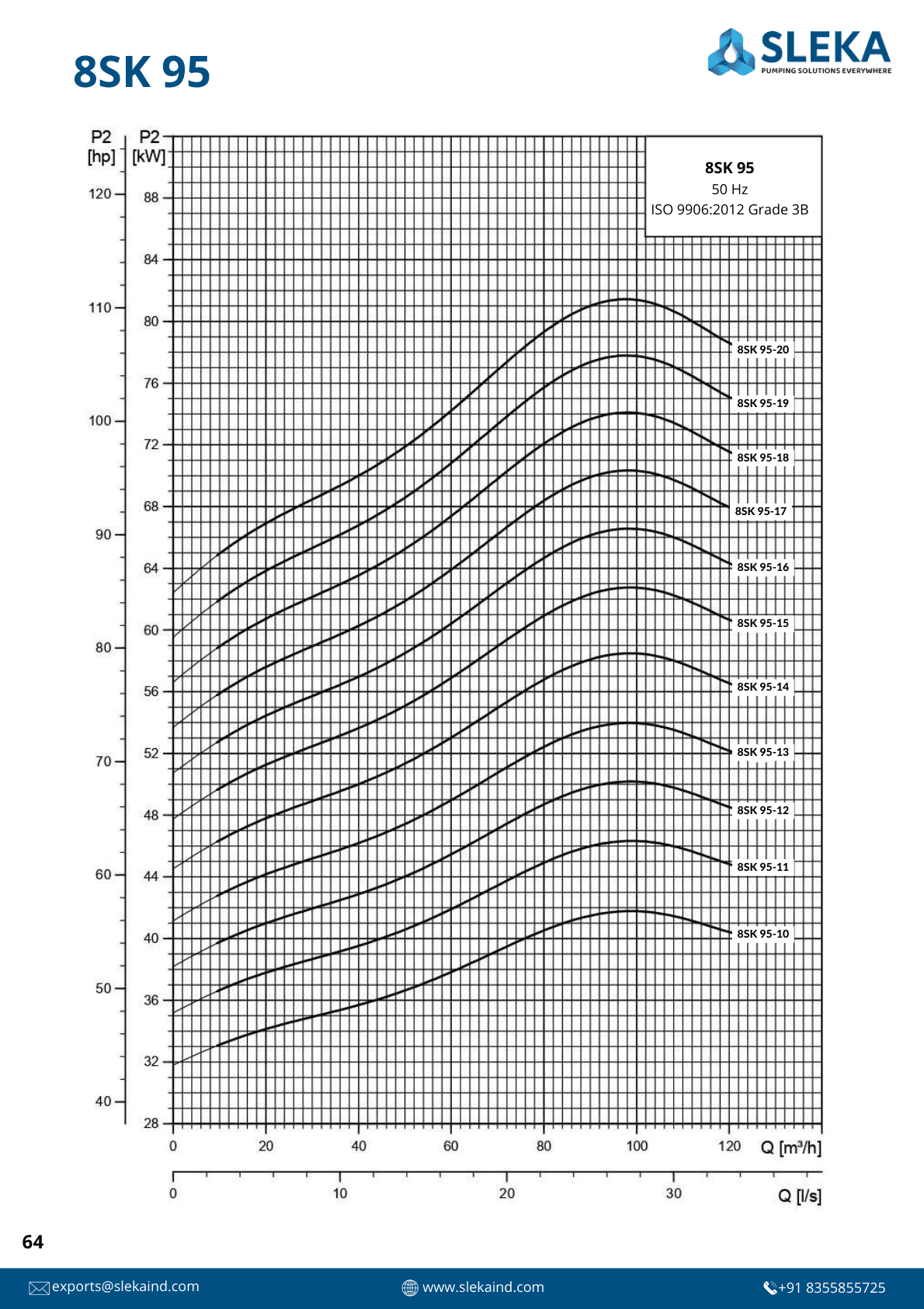

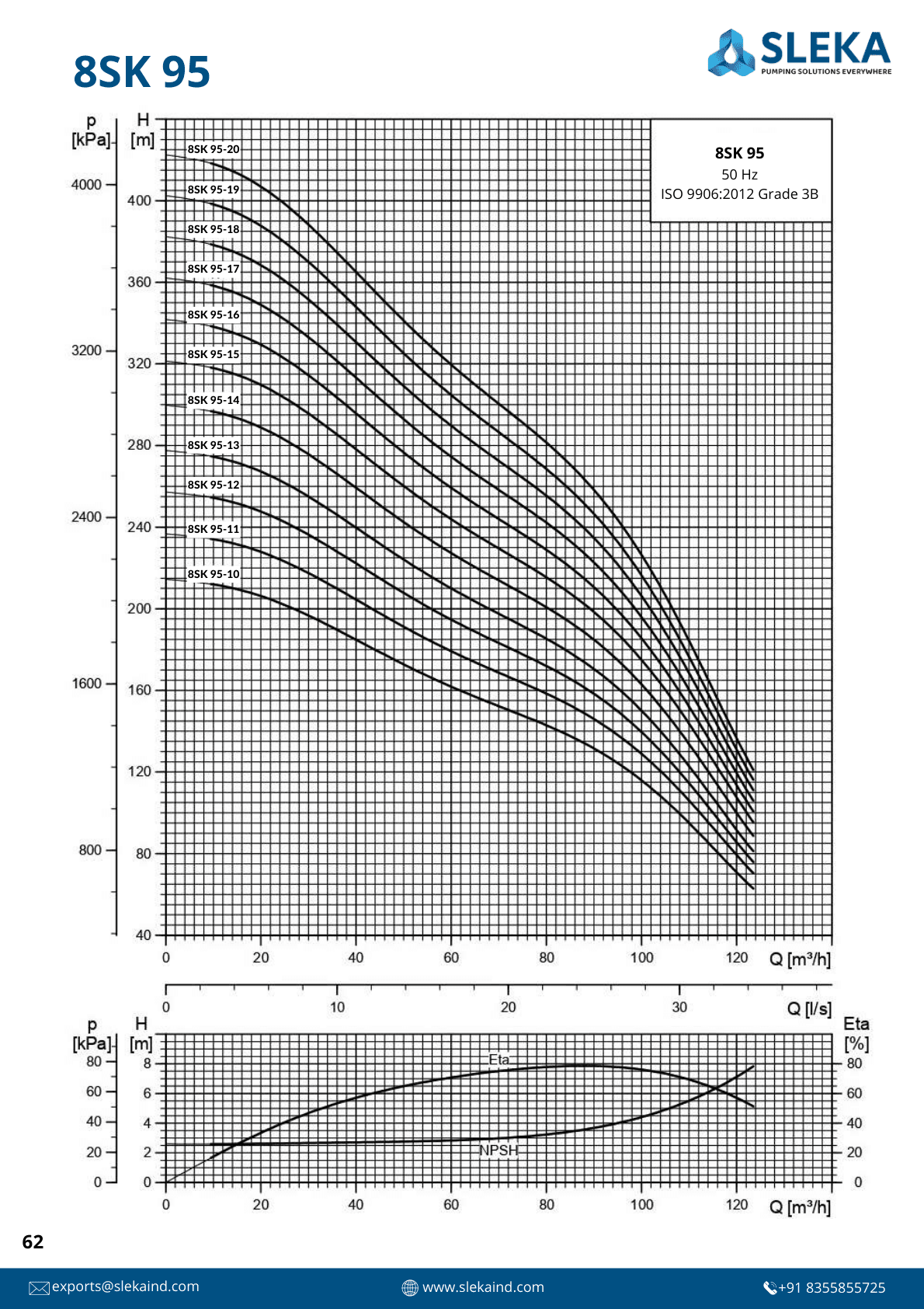

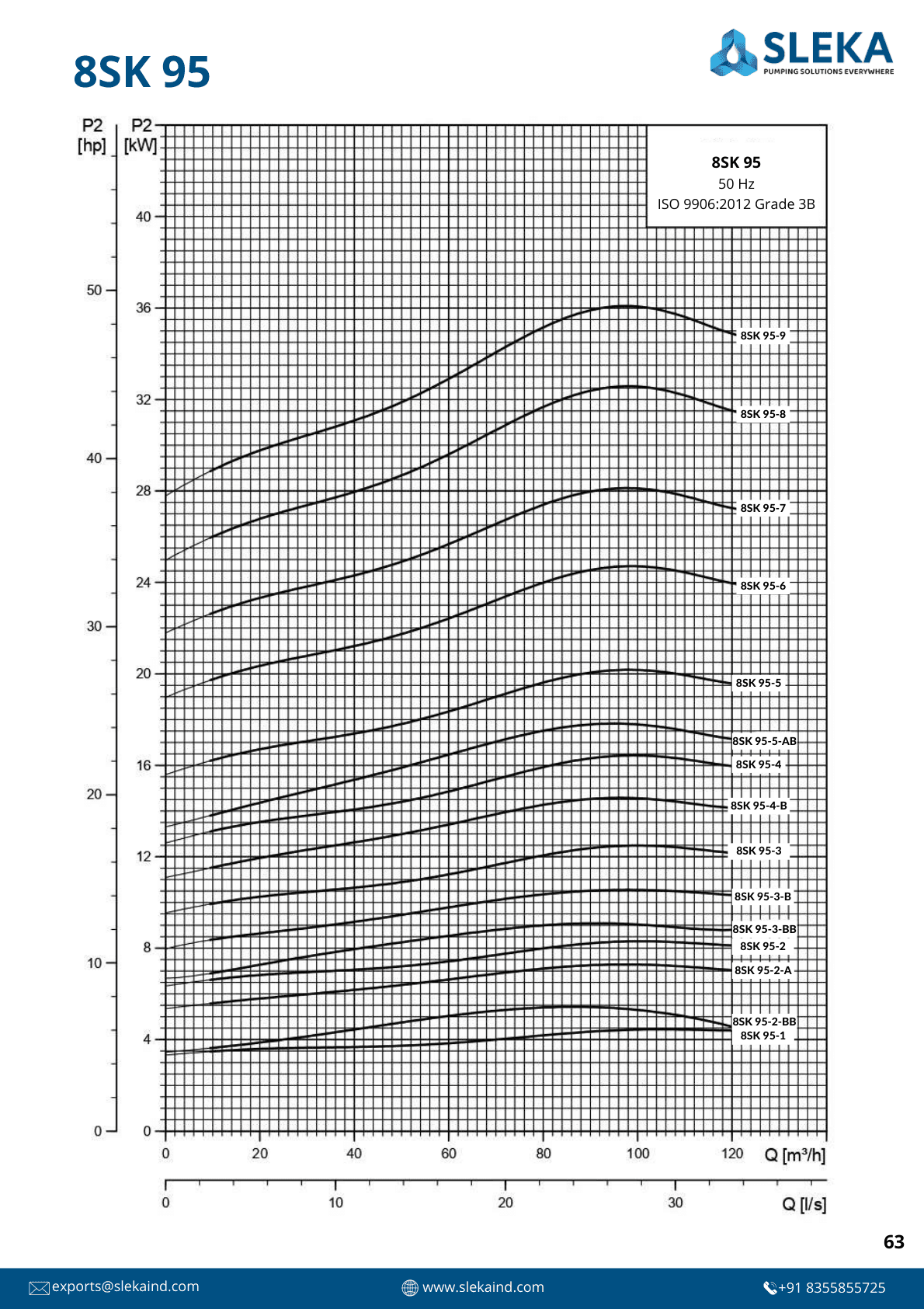

Performance Curve

Tested per ISO 9906:2012 Grade 3B. Curves shown at n = 2900 rpm (50Hz) / 3500 rpm (60Hz) using clean water at 20°C, kinematic viscosity 1 mm²/s. Tolerance per ISO 9906 Annex A.

All Variants — 26 configurations

Model	Motor (kW)	Motor (HP)	Total Head (m) at Q [m³/h]														Height (mm)	Weight (kg)
			0	10	20	30	40	50	60	70	80	90	100	110	120	122
8SK 95-1	5.5	7.5	23	22	21	20	18	17	15	14	13	13	11	9	6	6	620	20.8
8SK 95-2-BB	5.5	7.5	27	27	26	24	23	22	21	19	17	14	10	5	0	0	748	24.4
8SK 95-2-A	7.5	10	39	38	36	34	32	29	27	26	24	21	18	14	9	8	748	24.4
8SK 95-2	9.3	12.5	44	43	41	39	36	33	31	29	27	25	22	17	13	12	748	24.4
8SK 95-3-BB	9.3	12.5	49	47	46	43	40	37	35	32	29	25	20	14	8	7	876	28
8SK 95-3-B	11	15	56	55	53	50	47	44	41	38	35	31	26	20	13	12	876	28
8SK 95-3	13	17.5	65	64	62	58	55	51	47	44	42	38	33	27	20	19	876	28
8SK 95-4-B	15	20	77	76	73	70	65	60	56	53	49	44	37	29	20	18	1004	31.6
8SK 95-4	18.5	25	86	84	82	78	73	67	63	59	55	51	44	36	26	25	1004	31.6
8SK 95-5-AB	18.5	25	94	92	89	85	79	74	69	65	60	54	45	35	24	22	1132	35.2
8SK 95-5	22	30	106	105	101	96	90	84	78	73	69	63	55	44	32	30	1132	35.2
8SK 95-6	26	35	129	127	123	117	110	102	96	90	84	77	68	55	41	38	1260	38.8
8SK 95-7	30	40	148	146	142	135	126	118	110	103	96	88	77	62	46	43	1402	46.2
8SK 95-8	37	50	170	167	163	155	145	136	127	119	112	102	90	73	54	50	1530	49.8
8SK 95-9	37	50	189	187	182	173	162	151	141	133	124	114	99	80	59	55	1685	53.4
8SK 95-10	45	60	214	212	206	197	185	173	162	152	143	132	116	95	71	66	1786	57
8SK 95-11	55	75	237	234	228	217	205	191	179	169	158	146	129	106	79	74	1914	60.6
8SK 95-12	55	75	257	254	248	236	222	208	195	183	172	158	140	115	86	80	2042	64.2
8SK 95-13	55	75	278	275	267	255	240	224	210	198	185	170	150	123	92	86	2170	67.8
8SK 95-14	63	85	300	297	289	276	259	243	227	214	201	185	163	134	100	93	2298	71.4
8SK 95-15	75	100	321	318	310	296	278	260	244	230	215	198	175	144	107	100	2426	75
8SK 95-16	75	100	342	338	329	314	296	277	259	244	229	211	182	152	114	106	2554	78.6
8SK 95-17	75	100	362	358	349	333	313	293	275	258	242	223	196	160	120	112	2682	82.2
8SK 95-18	93	125	382	378	368	352	331	309	290	272	255	235	206	169	125	117	2810	85.8
8SK 95-19	93	125	402	398	388	370	348	325	305	287	269	247	216	177	131	122	2938	89.4
8SK 95-20	93	125	423	418	407	388	365	341	320	301	281	258	226	184	137	128	3066	93

Construction & Materials

Bill of Materials

Diffuser: Stainless Steel (AISI 304)
Impeller: Stainless Steel (AISI 304)
Pump Shaft: Stainless Steel (AISI 431)
Coupling: Stainless Steel (AISI 304)
Strainer: Stainless Steel (AISI 304)
Valve Cap: Stainless Steel

Every standard pump is manufactured entirely from AISI 304 stainless steel sheet metal with NEMA standard motor mounting. The delivery casing includes a built-in non-return valve to prevent backflow and minimize water hammer.

Exploded View & MOC

8SK 95 exploded view and bill of materials

Operating Conditions

Voltage	380-415 V (+6%/-10%)
Frequency	50 Hz
Max Water Temperature	50°C
Max Sand Content	50 g/m³
Max Starts per Hour	20
Degree of Protection	IP 68
Rotation Direction	Clockwise from coupling side
Standards Compliance	ISO 9906:2012 Grade 3B

Special Construction Options

Available on factory order

AISI 316 stainless steel on request
NPT thread connection on request

Discuss Custom Requirements
